- Roof fixing screws
THE SCREWS USE FOR 9 - 11 WAVES ROOF STEEL
G-Bin #12-14 x 50 HWFS
G-Bin #12-14 x 50 HWFT
THE SCREWS USE FOR 5 WAVES ROOF STEEL
G-Bin #12-14 x 55 HWFS
G-Bin #12-14 x 55 HWFT
THE SCREWS USE FOR INSULATION ROOF STEEL
G-Bin #12-14 x 68 HWFS
G-Bin #12-14 x 68 HWFT
THE SCREWS USE FOR TILE SHARPED ROOF STEEL
G-Bin #12-14 x 68 HWFS
G-Bin #12-14 x 68 HWFT
The screws use for sandwich panels
G-Bin #12-14 x 75 HWFS
G-Bin #12-14 x 75 HWFT
G-Bin #12-14 x 95 HWFS
G-Bin #12-14 x 95 HWFT
G-Bin #12-14 x 120 HWFS
G-Bin #12-14 x 120 HWFT
- Wall fixing screws
Wall fixing screws (with insulation)
G-Bin #12-14 x 30 HWFS
G-Bin #12-14 x 35 HWFS
G-Bin #12-14 x 40 HWFS
- Clip fixing screws
Seamlock's clip fixing screws (not insulation)
G-Bin #12-14 x 20 HWF
Seamlock's clip fixing screws (with insulation)
G-Bin #12-14 x 25 HWF
G-Bin #12-14 x 35 HWF
G-Bin #12-14 x 40 HWF
- Beam fixing screws
- SIDE LAPPING SCREW
- Truss fixing screws
- Other products

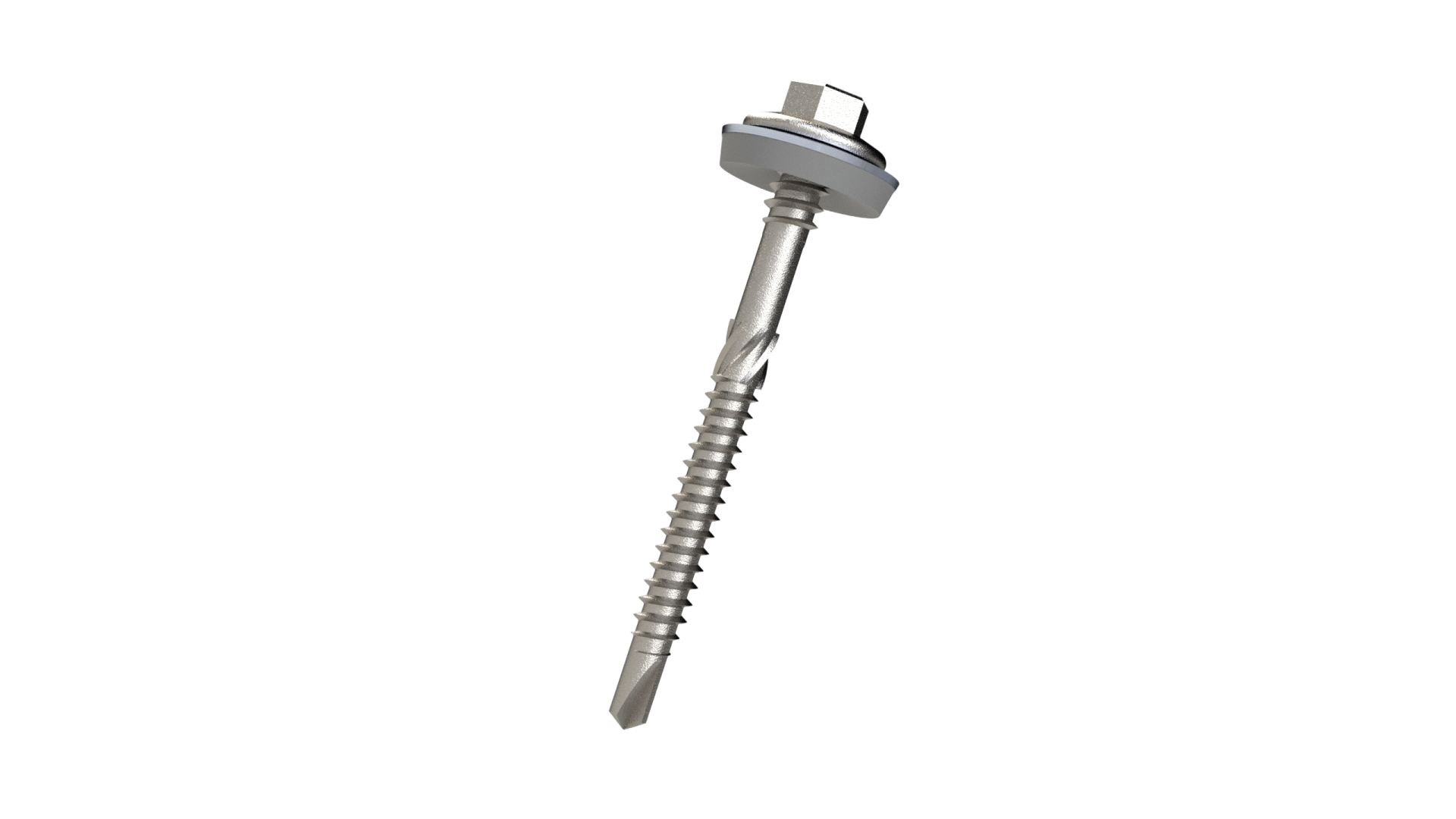

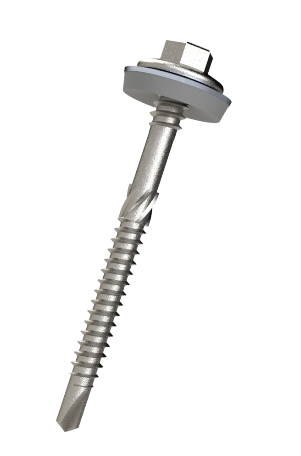

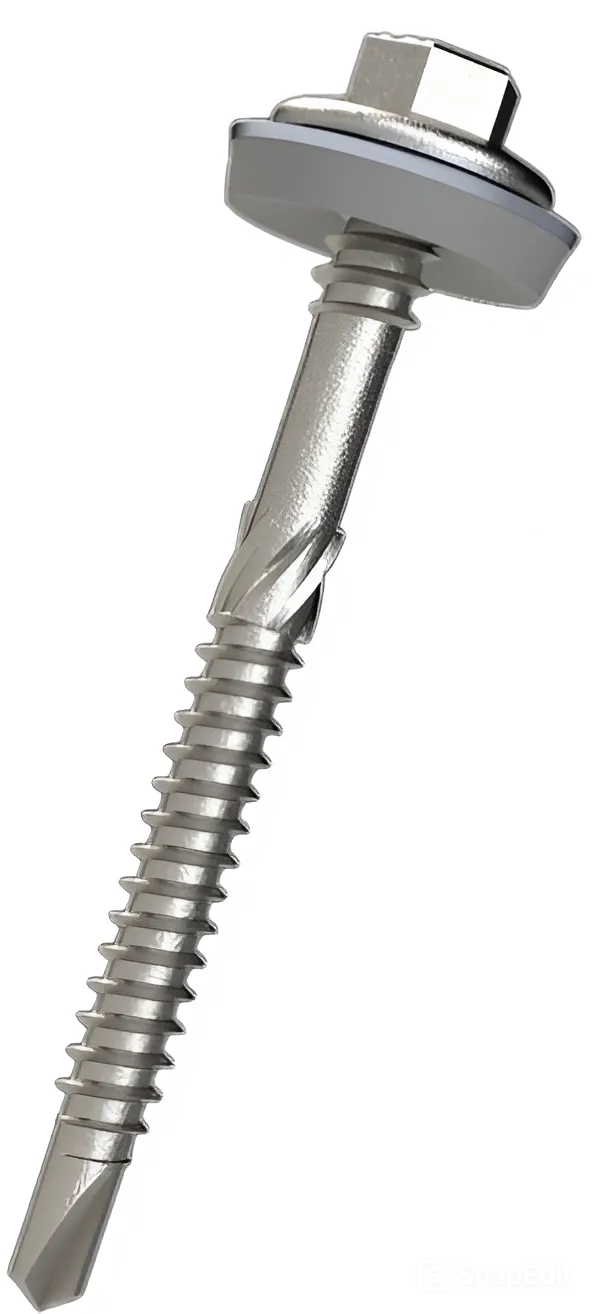

THE PREMIUM SELF-DRILLING SCREWS USE FOR SANDWICH PANEL
- Material: Specific hardened steel.
- Head type: Hexagon (soket 8 mm).
- Thread diameter: #12 gauge (5.5 mm) / #14 gauge (6.3 mm).
- Thread type: Double thread or half thread.
- Spiral knurl (patented)

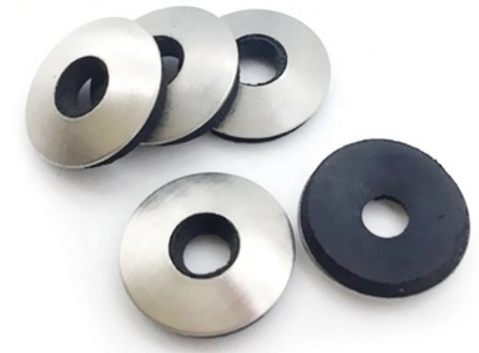

- Washer: EPDM seal or Alu EPDM bonded washer.
- Drill capacity: Max 6.0 mm.
- Finish: KOKEN self-drilling screws apply Hi-tech coating technology, tested according to Australian standard AS3566.2 and DIN 50018 for corossion effectiveness better orther traditional silver coating screws.
- Application: Use for the sandwich panel.
- Size: 12-14×75 (5.5-14×75); 12-14×95 (12-14×95); 12-14×120 (5.5-14×120).
